TimeZero TZ Navigator v5 Marine Navigation Software (2 Licences)

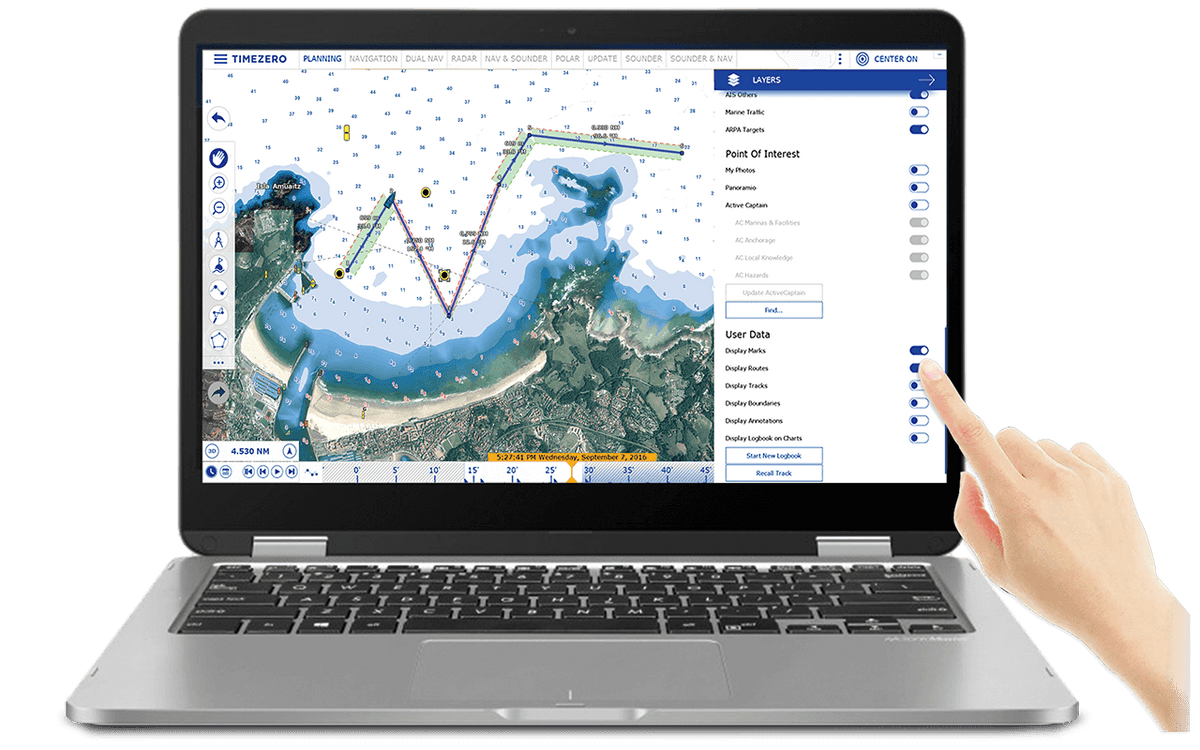

TIMEZERO TZ Navigator v5 is PC navigation software for recreational boaters, from cruising and day trips in a powerboat to offshore sailing and racing. It is designed around two objectives: supreme control and comfort, with a user interface fully adapted to touch screens.

Two licences included: TZ Navigator can be installed on two computers, for example one at the helm and one at home for planning (Home Planning mode).

Works with your Furuno system

Connect directly to a Furuno NavNet network over Ethernet for navigation data, waypoints and routes, and add the optional Radar and Sounder modules for radar overlay and sounder display.

Key features

• Exclusive TIMEZERO chart engine: seamless 2D and 3D chart display, PhotoFusion (satellite photos blended with charts) and depth shading
• TZ MAPS compatible: vector, detailed land information, high-resolution satellite photos and high-resolution bathymetry (raster where available), plus mm3d charts from C-MAP and MapMedia
• Worldwide planning charts, 3D database and tide database as a base map
• Advanced route planning wizard: optimise departure time for tides and currents, with a green/red route safety check
• Anti-grounding security cone using vector chart data, plus lost sensor, anchor, CPA/TCPA and depth alarms
• AIS and MARPA targets with CPA graphics and target tracks; AIS Marine Traffic via internet

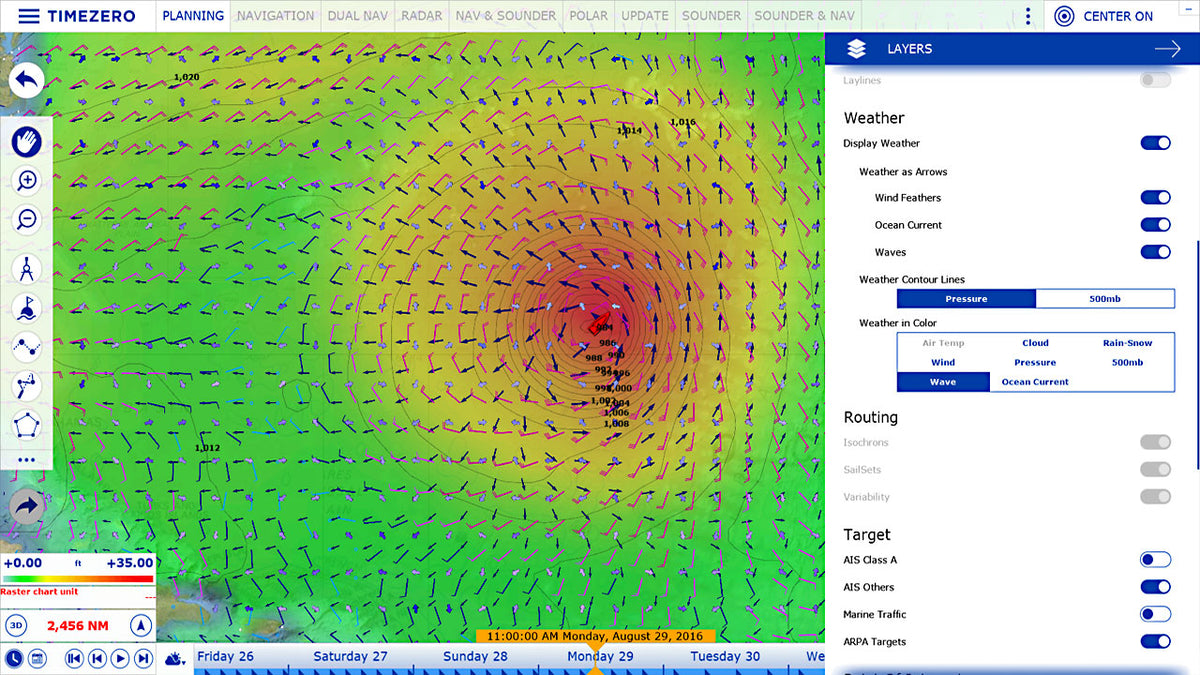

• Free weather data service: rain, cloud, air temperature, wind, waves, ocean currents and pressure, with forecast, tide and current animation
• Trips logbook, odometer NavData, ActiveCaptain points of interest, geolocated photos
• Marks, routes, boundaries and photos synchronised with TZ iBoat and TZ Cloud
• DSC and MOB; unlimited track recording; day, dusk and night modes
• Instruments via NMEA 0183, NMEA 2000 (via Actisense NGT-1 USB) or Furuno NavNet network (navigation data); autopilot output

Optional modules

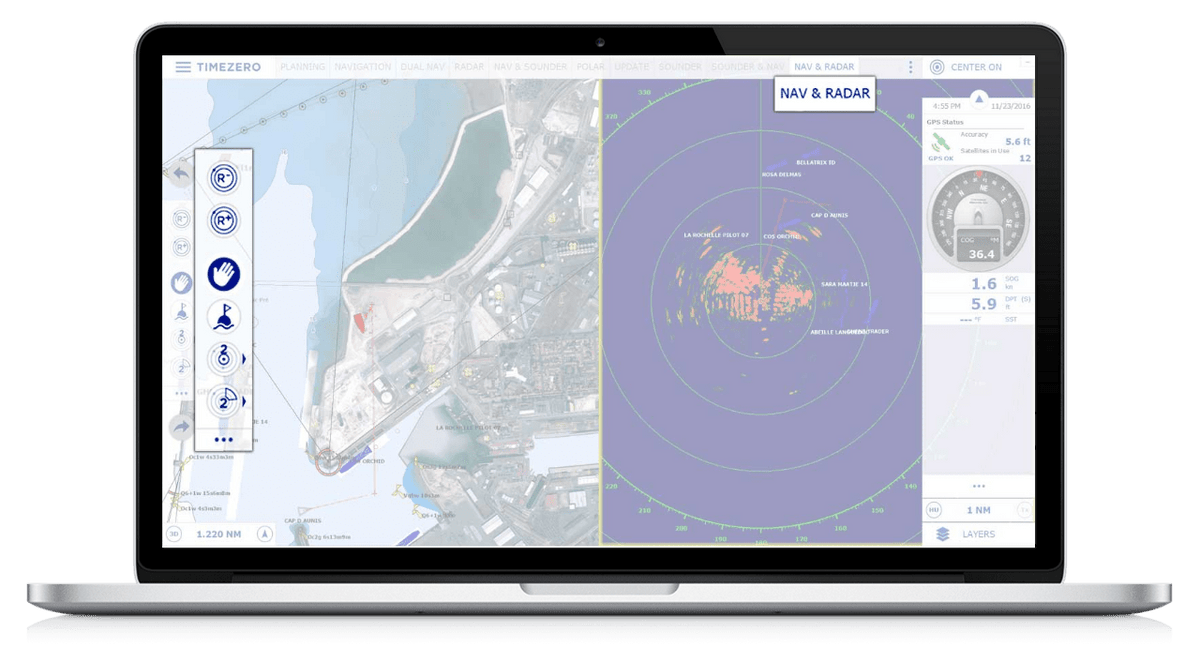

• Radar: Furuno DRS and FAR radar control and chart overlay

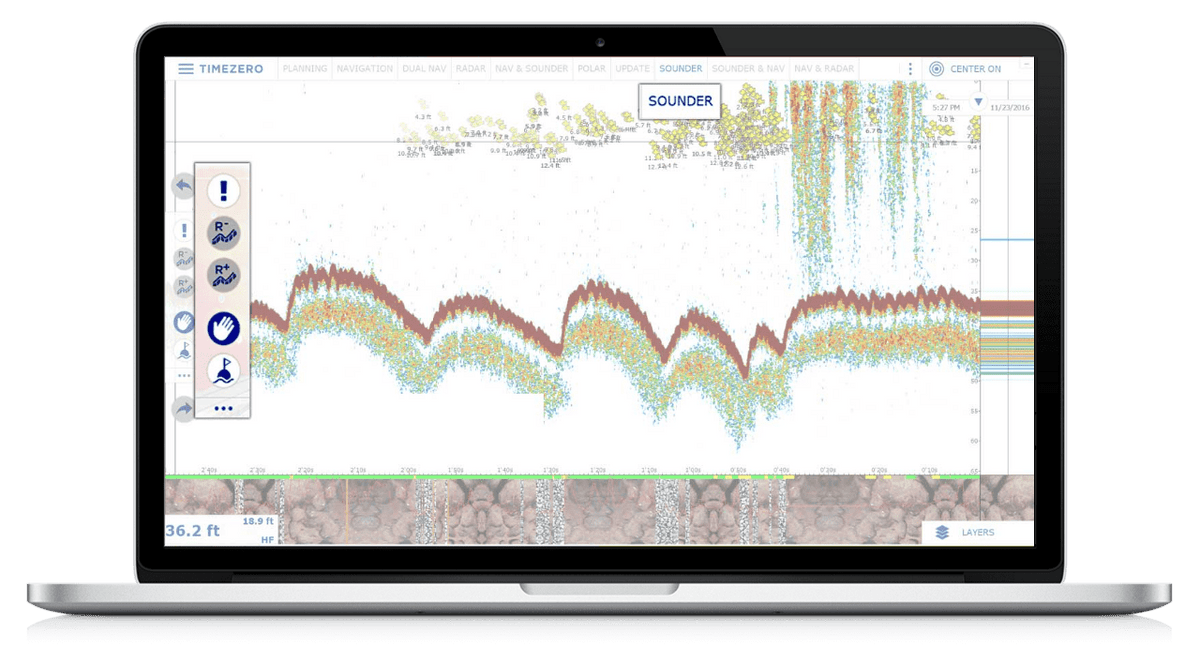

• Sounder: Furuno Ethernet sounder control and echogram (not for DFF3D)

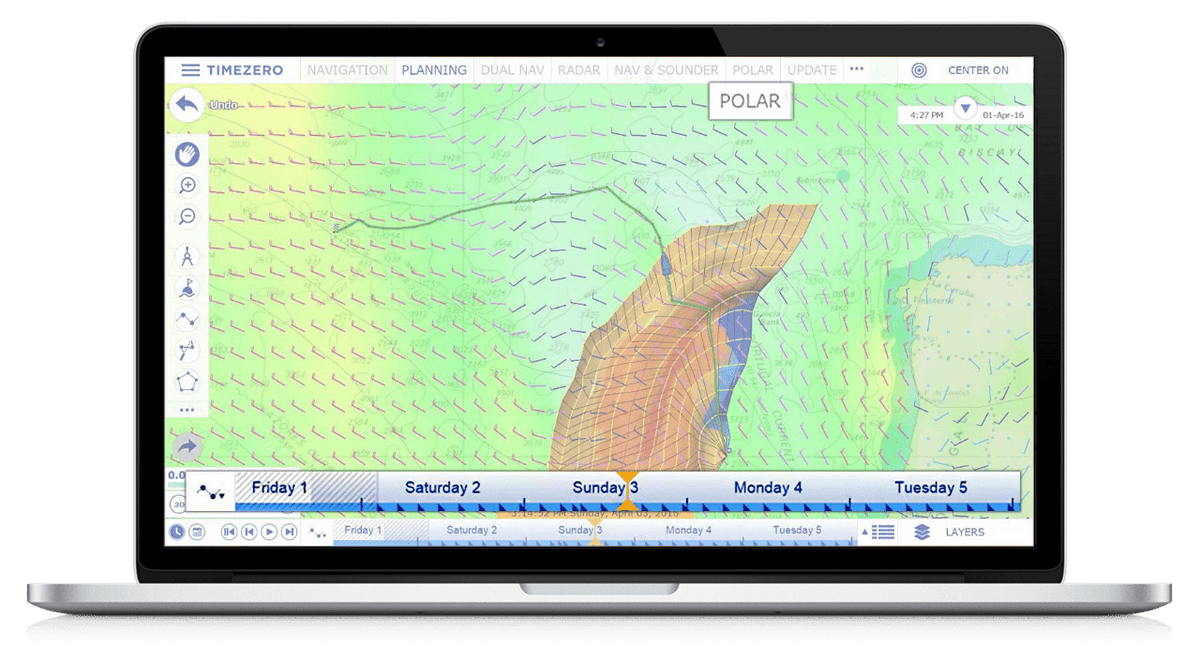

• Weather Routing: routing according to wind, waves and currents, with polars
• Additional Workstation: a further Navigator seat for the same vessel

Navigator limits: up to 30,000 marks, 200 routes (of 500 waypoints each) and 100 boundaries. Need more, or PBG, DFF3D, and high-resolution ocean data? See TZ Professional.

Charts

No chart included. Charts are purchased separately (TZ MAPS Australia covers Australia, Papua New Guinea, Tasmania, the Solomon Islands and the Cocos Islands).

System requirements (TZ Navigator v5)

• Microsoft Windows 10/11 (64-bit operating system)
• CPU: Intel Core i5 4th generation or equivalent. Windows Arm-based PCs are not supported (x86 only, Intel recommended)
• 4 GB RAM
• Video: Intel HD 4400 graphics chipset or equivalent
• Screen resolution: 1280 x 800
• 40 GB of free disk space (solid-state recommended)
• USB or serial port for NMEA 0183, Actisense NGT-1 / NGX-1-USB for NMEA 2000, or a 100Base-T network adapter for Furuno Ethernet sensors

Licensing

• Software download only (not supplied on hardware), delivered as a TIMEZERO licence code registered to your My TIMEZERO account
• No dongle. TIMEZERO v5 uses its own software protection system
• Includes two licences / workstations

Need a computer to run it?

Hostile Marine can also supply laptops and 12V marine computers ready to run TimeZero. Ask us for a quote and tell us about your boat, displays and Furuno network, and we'll put together a recommendation.

Specifications and feature lists are taken from TIMEZERO's official website (mytimezero.com), current to TIMEZERO v5. TimeZero and TIMEZERO are trademarks of their respective owner. Software is supplied as a licence code; no physical shipping is required.
