Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.
The SS175L transmits across the following bandwidth:
- Low frequency 40 to 60 kHz

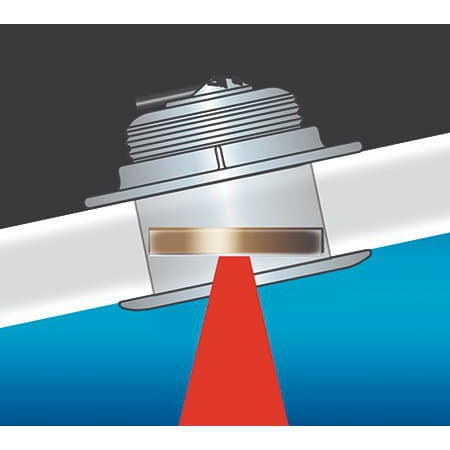

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
The SS175L is available in three Tilted Element models:
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and fast-response water-temperature sensor
- 1 kW with maximum depth to 762 m (2,500')
- Low frequency: 40 to 60 kHz
- Great deep-water performance
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Stainless steel housing for use on stepped, planing or displacement hull
Specifications
- Weight: 2.7 kg (6 lb.)
- Recommended Boat Length: Up to 11 m (36')
- Hull Material: Compatible with all hull materials
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane

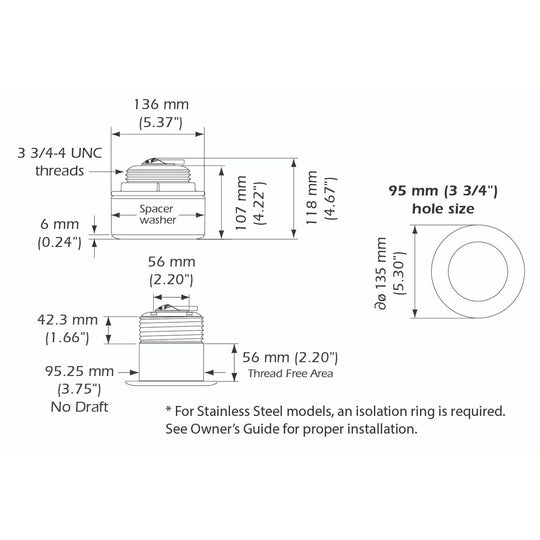

- Hole Diameter:
- Transducer Element: Seven internal broadband ceramic assemblies
