Flush Mount Electric Reel Connector Kit – Socket & Plug | 50A IP67

A clean, low-profile power point for your electric reel. The Hostile Marine flush mount connector sits neatly in cockpit panels and gunwales, giving you a factory-style finish without giving anything away on performance.

Rated to 50A across 9V–52V DC systems, it's built for deep-drop reels, trolling motors and other marine gear, and it's sealed to IP67 to handle saltwater, vibration and rough weather.

Specifications

• Rated 50A / 600V
• Screw-in, push-to-lock connection
• 9V – 52V DC
• IP67 sealed
• Solid copper, gold-plated terminals
• PA66 housing
• Withstand voltage 2500V
• Insulation resistance ≥100MΩ
• Contact resistance ≤10mΩ
• RoHS compliant

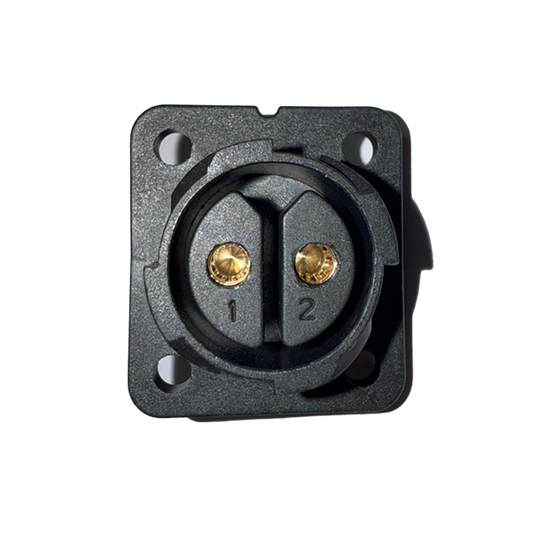

• 2-pin, pin 1 positive
• Compatible with all Hostile Marine reel connectors
• Max panel thickness 4.0mm

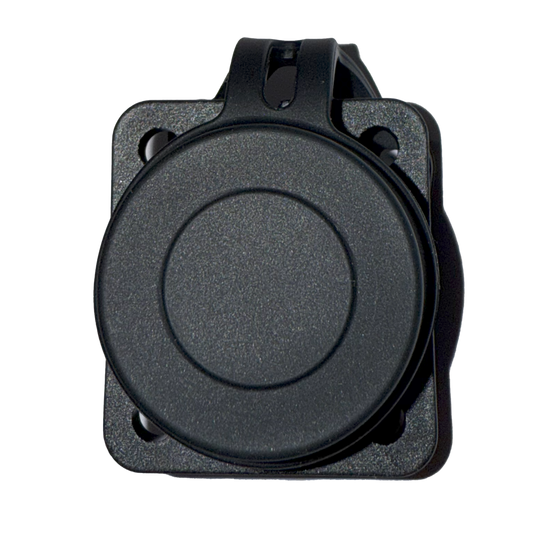

• Rubber boot cover
• Panel cut-out: Ø22.5mm hole plus 4 × Ø4.0mm holes at 22 × 26mm centres
• Screw terminals accept cable up to 8 B&S
• Plug cable diameter range Ø6–Ø16mm

In the box

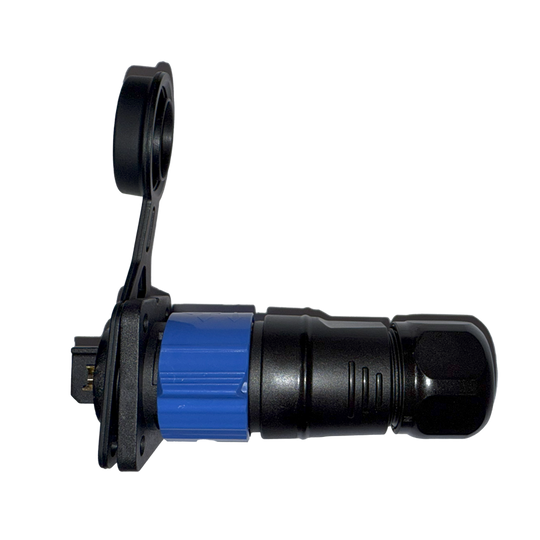

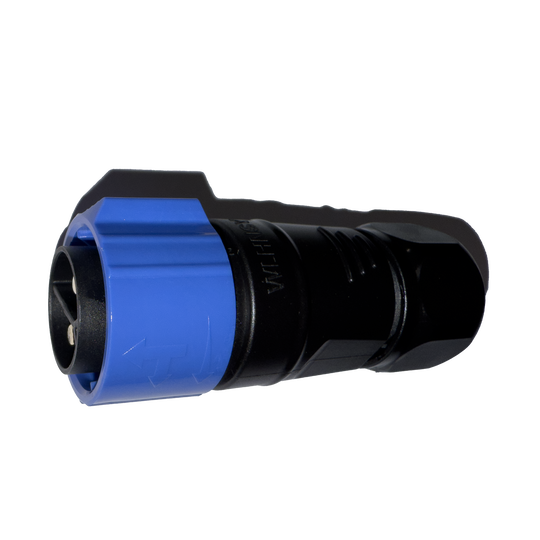

1 x flush mount socket with rubber boot cover, 1 x plug

Sold as a kit.

Warranty: 12 months

Downloads

Flush Mount Socket spec sheet (PDF)
Electric Reel Plug spec sheet (PDF)
