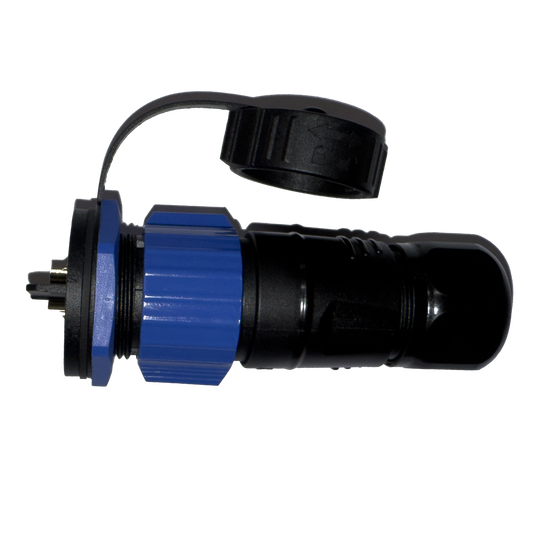

Bulkhead Mount Electric Reel Connector Kit – Socket & Plug | 50A IP67

Tough through-bulkhead power for serious offshore rigs. The Hostile Marine bulkhead mount connector fits securely through bulkheads, consoles and engine compartments where strength and easy access matter most.

Rated to 50A across 9V–52V DC, it reliably powers deep-drop reels, trolling motors and other high-demand gear. IP67 sealing and gold-plated solid copper terminals stand up to saltwater, vibration and extreme weather.

Specifications

• Rated 50A / 600V
• Screw-in, push-to-lock connection
• 9V – 52V DC
• IP67 sealed
• Solid copper, gold-plated terminals
• PA66 housing
• Withstand voltage 2500V
• Insulation resistance ≥100MΩ
• Contact resistance ≤10mΩ
• RoHS compliant
• 2-pin, pin 1 positive
• Compatible with all Hostile Marine reel connectors
• Max panel thickness 4.0mm
• Rubber boot cover
• Panel cut-out: Ø22.5mm hole plus 4 × Ø4.0mm holes at 22 × 26mm centres
• Screw terminals accept cable up to 8 B&S
• Plug cable diameter range Ø6–Ø16mm

In the box

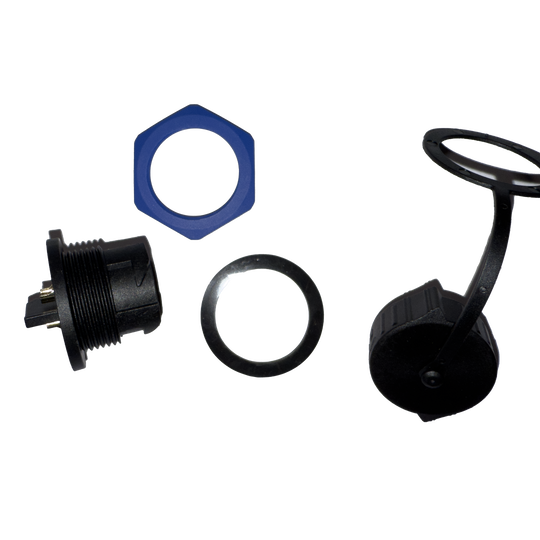

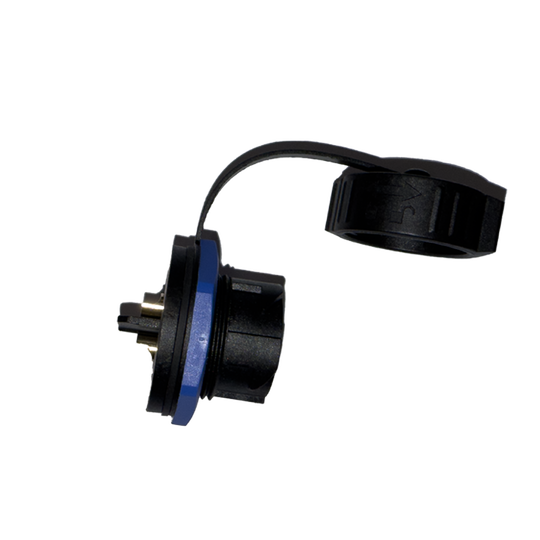

1 x bulkhead mount socket with rubber boot cover, 1 x plug

Sold as a kit.

Warranty: 12 months

Downloads

Electric Reel Plug spec sheet (PDF)
