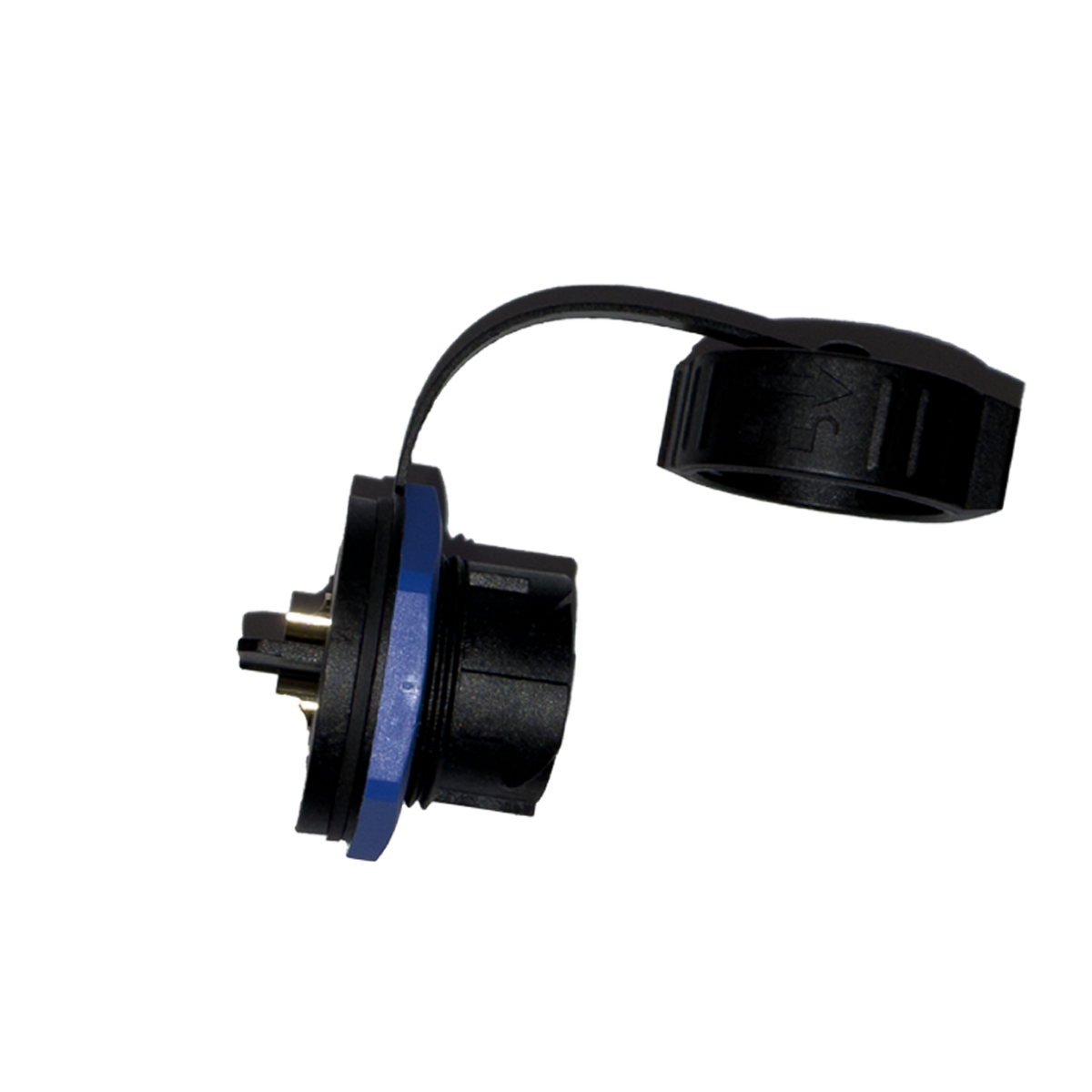

Bulkhead Mount Electric Reel Socket – Spare/Add-on | 50A IP67

Need an extra power point or a replacement? This is the Hostile Marine bulkhead mount electric reel socket on its own, the same tough, IP67-sealed socket that comes in our bulkhead kits.

Pair it with a Hostile Marine plug, pig tail or lead. Rated to 50A across 9V–52V DC.

Specifications

• Rated 50A / 600V
• Screw-in, push-to-lock connection
• 9V – 52V DC
• IP67 sealed
• Solid copper, gold-plated terminals
• PA66 housing
• Withstand voltage 2500V
• Insulation resistance ≥100MΩ
• Contact resistance ≤10mΩ
• RoHS compliant
• 2-pin, pin 1 positive
• Compatible with all Hostile Marine reel connectors
• Max panel thickness 4.0mm
• Rubber boot cover
• Panel cut-out: Ø22.5mm hole plus 4 × Ø4.0mm holes at 22 × 26mm centres
• Screw terminals accept cable up to 8 B&S

In the box

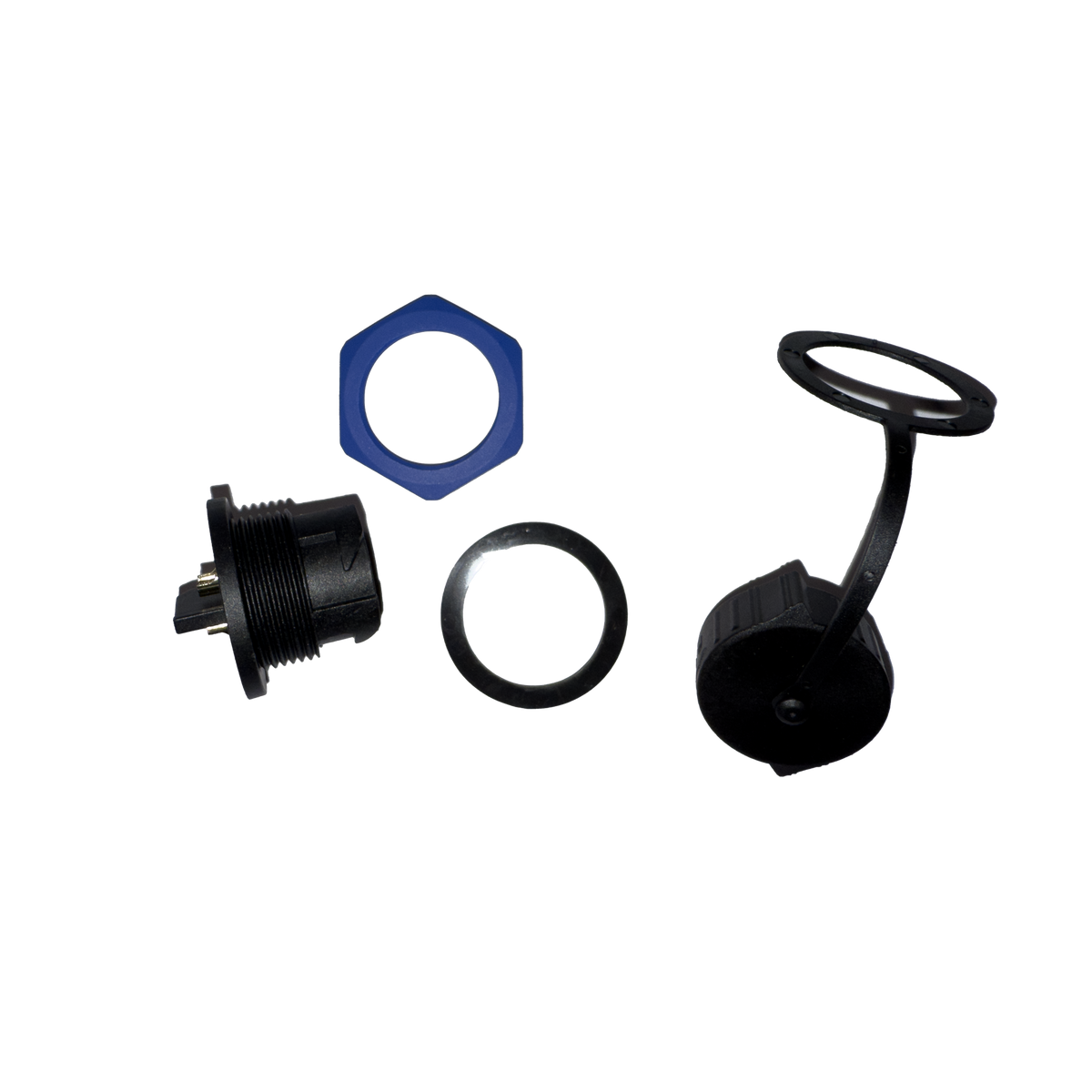

1 x bulkhead mount socket with rubber boot cover. Plug not included.

Warranty: 12 months
