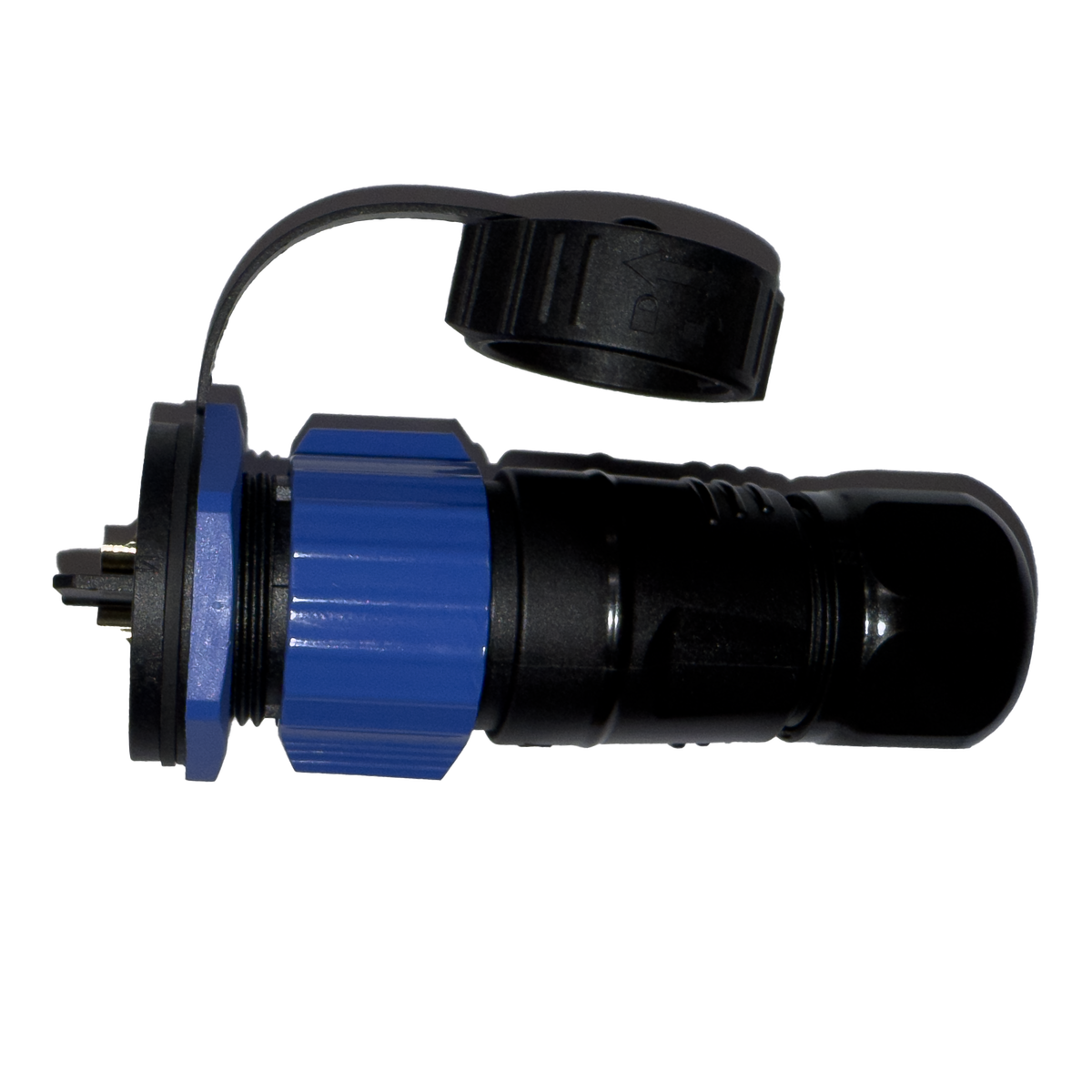

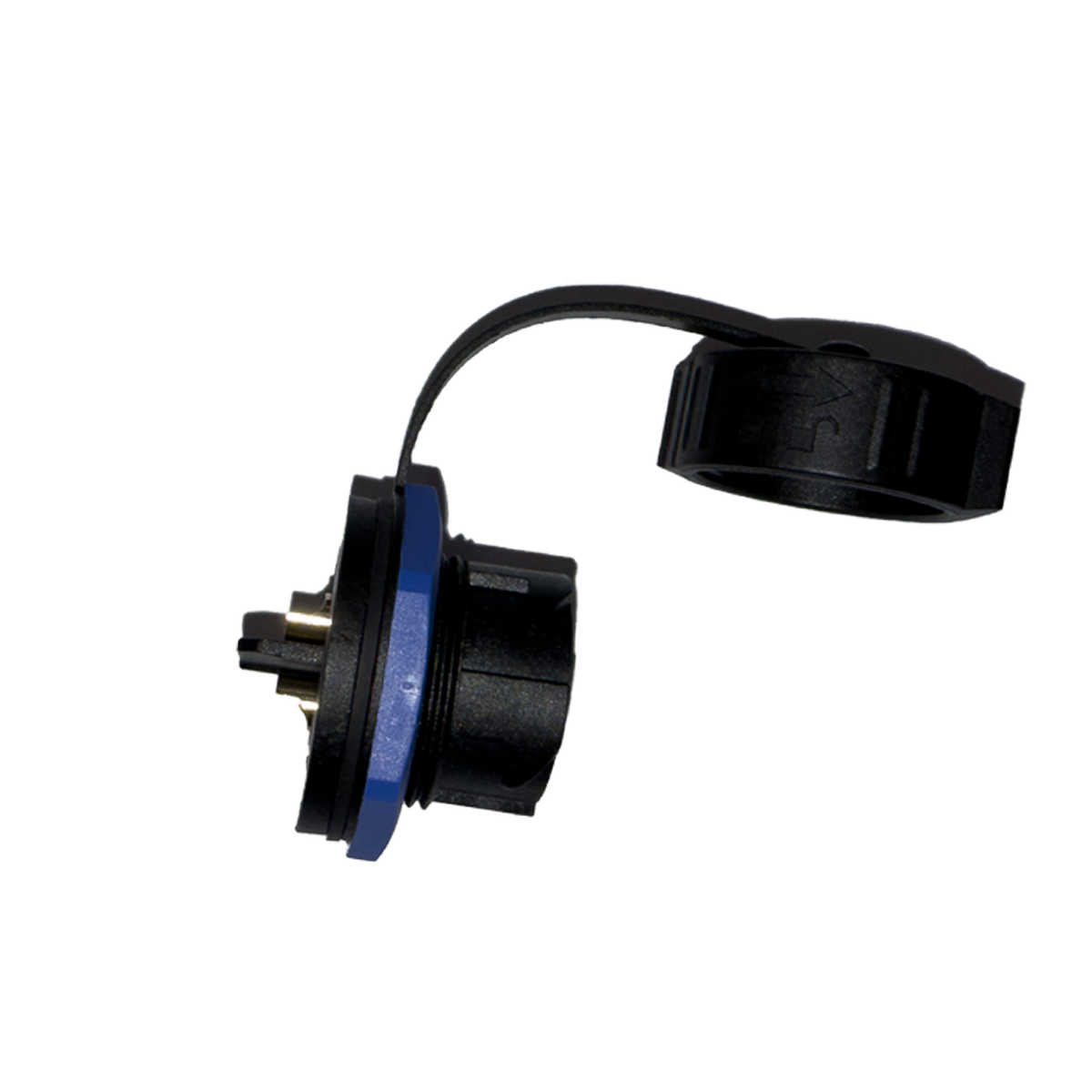

Bulkhead Mount Electric Reel Connector Boat Kit – 4 Sets | 50A IP67

The complete four-station setup for serious offshore and commercial boats. You get four full Hostile Marine bulkhead mount reel connector sets, built to mount securely through cabins, transoms, consoles or engine compartments.

Each set handles up to 50A across 9V–52V DC and is IP67 sealed with gold-plated solid copper terminals to resist saltwater, vibration, UV and extreme weather.

Specifications

• Rated 50A / 600V
• Screw-in, push-to-lock connection
• 9V – 52V DC
• IP67 sealed
• Solid copper, gold-plated terminals
• PA66 housing
• Withstand voltage 2500V
• Insulation resistance ≥100MΩ
• Contact resistance ≤10mΩ
• RoHS compliant
• 2-pin, pin 1 positive
• Compatible with all Hostile Marine reel connectors
• Max panel thickness 4.0mm
• Rubber boot cover
• Panel cut-out: Ø22.5mm hole plus 4 × Ø4.0mm holes at 22 × 26mm centres (per socket)
• Screw terminals accept cable up to 8 B&S
• Plug cable diameter range Ø6–Ø16mm

In the box

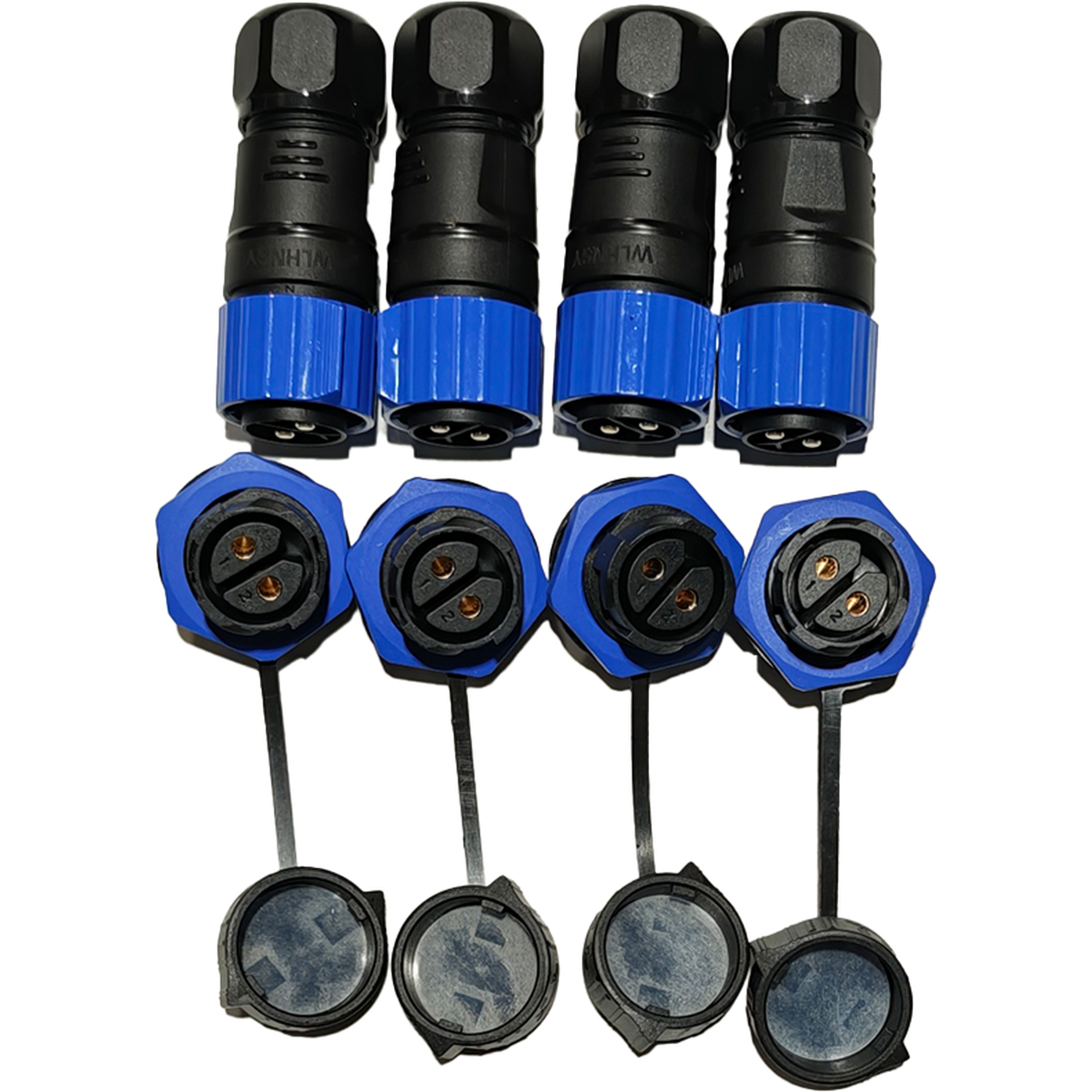

4 x bulkhead mount sockets with rubber boot covers, 4 x plugs

Warranty: 12 months
