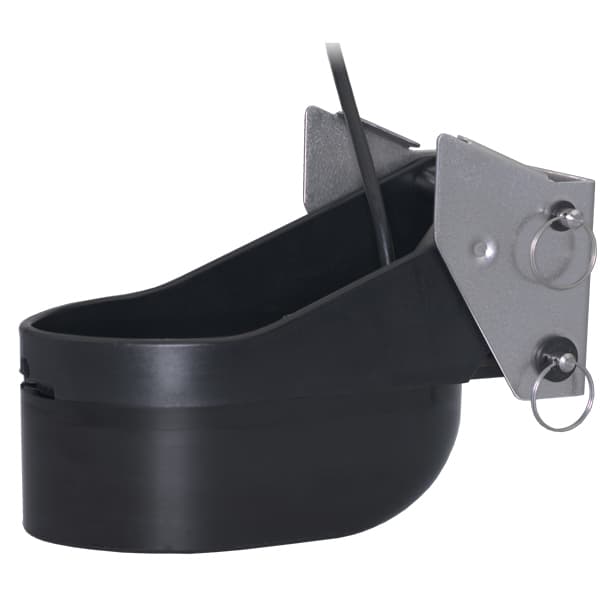

TM-260 1kW Depth/Temp NARROW Beam Multi Element Furuno 10pin plug, c/w bracket

TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Furuno's  "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fish finders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.

Features

• Depth and fast-response water-temperature sensor
• 1 kW
• Dual-frequency element:
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders

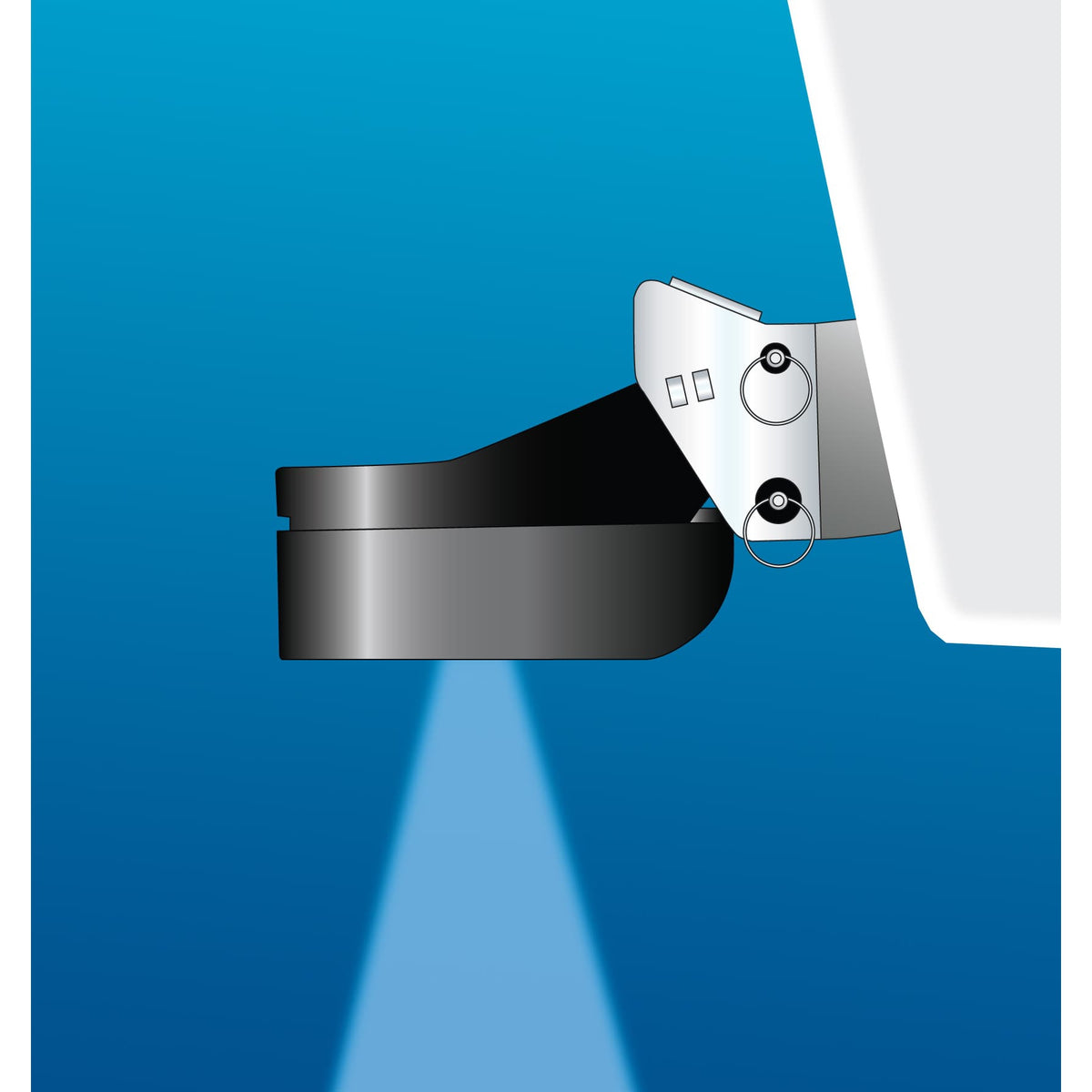

• Urethane transom transducer for installation on outboard and I/O powered boats
• Stainless steel kick-up bracket locks in the “up” position and will not damage the transom

Specifications

• Weight: 4 kg (8.9 lb.)
• Recommended Boat Length: 10 m (32') and up
• Hull Deadrise: Up to 28°
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Speed Performance: Up to 35 MPH
