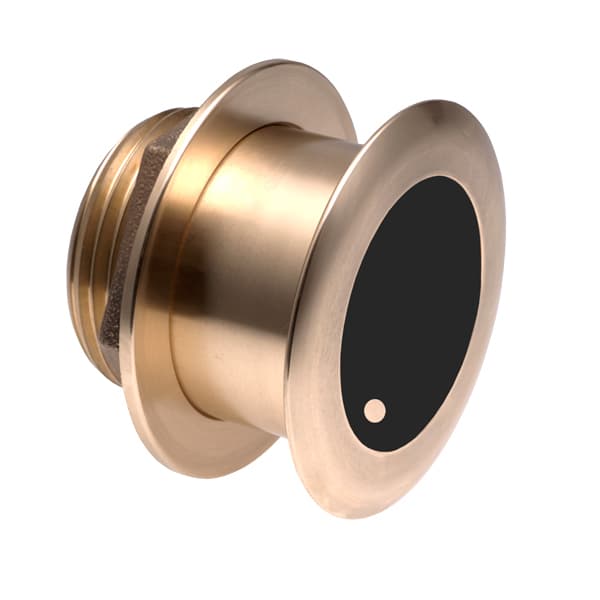

526T-LTD Bronze 1kW Depth/Temp B164 - Furuno 10pin

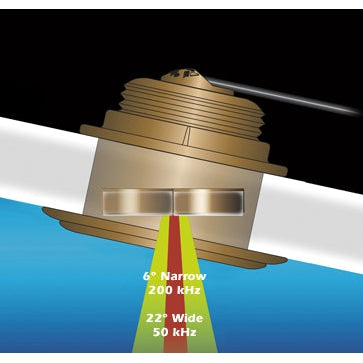

1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a high-performance fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (1/4") outside your hull and can sit on trailer rollers and bunks. The ceramic array is tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Available in three Tilted Element models:

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Fixed 12° tilted version for 8° to 15° hull deadrise
• Fixed 0° tilted version for 0° to 7° hull deadrise

Features

• Depth and fast-response water-temperature sensor
• 1 kW power for performance to 500 m (1,640'):
• 50 kHz with a wide 22° beam
• 200 kHz with a 6° beam
• Interfaces to any 600 W or 1 kW echosounder
• Engineered for centre-console and trailered boats
• Low-profile protrusion is less than 6.35 mm (0.25") outside your hull
• No effect on boat's running performance
• Bronze housing
• * RezBoost™ Enhanced, BDS & ACCU-Fish Compatible

Acoustical Data
