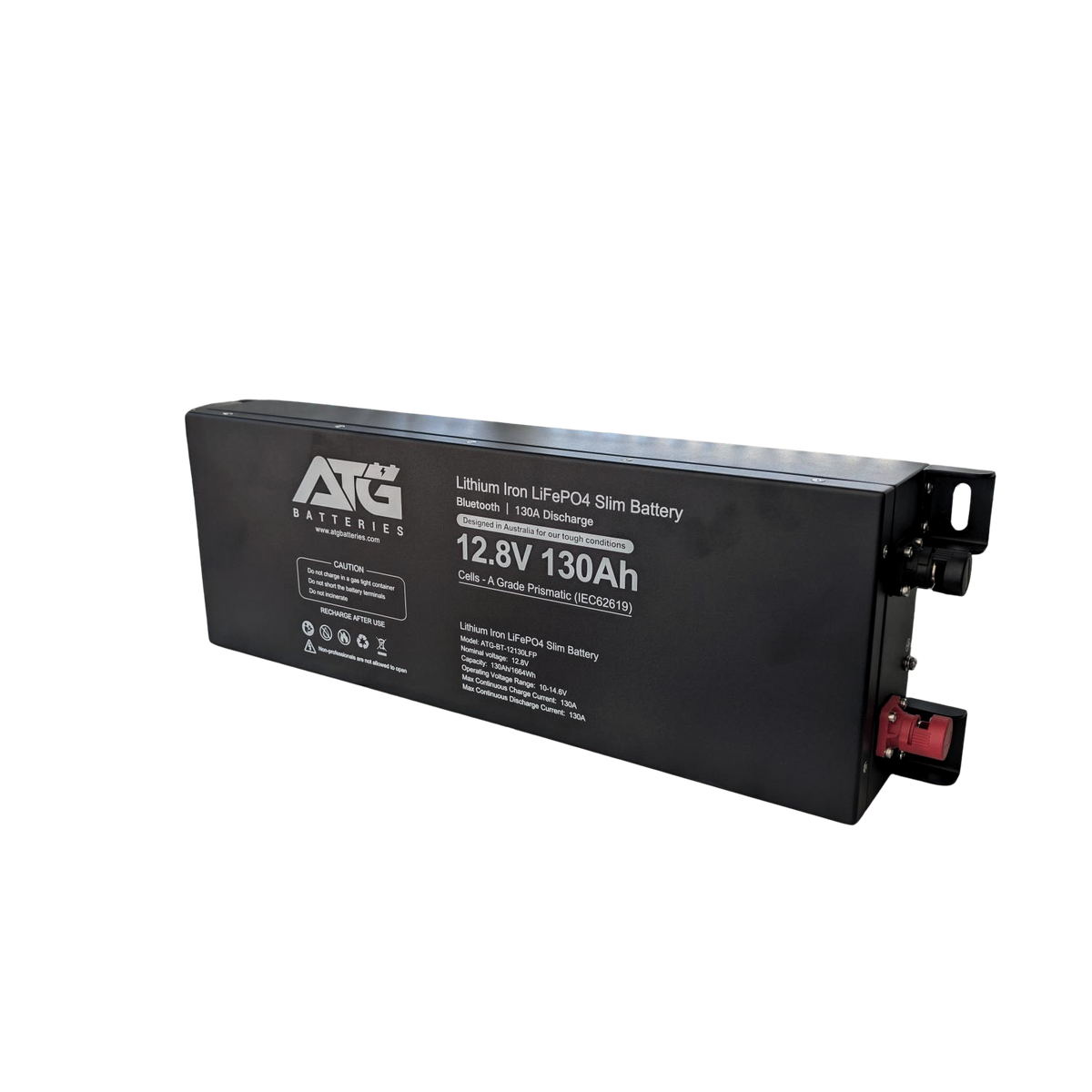

ATG 130AH Slim Lithium Battery

A slim 130Ah lithium that slides into tight spaces in caravans, 4WDs, boats and motorhomes, with Bluetooth monitoring through its JBD BMS.

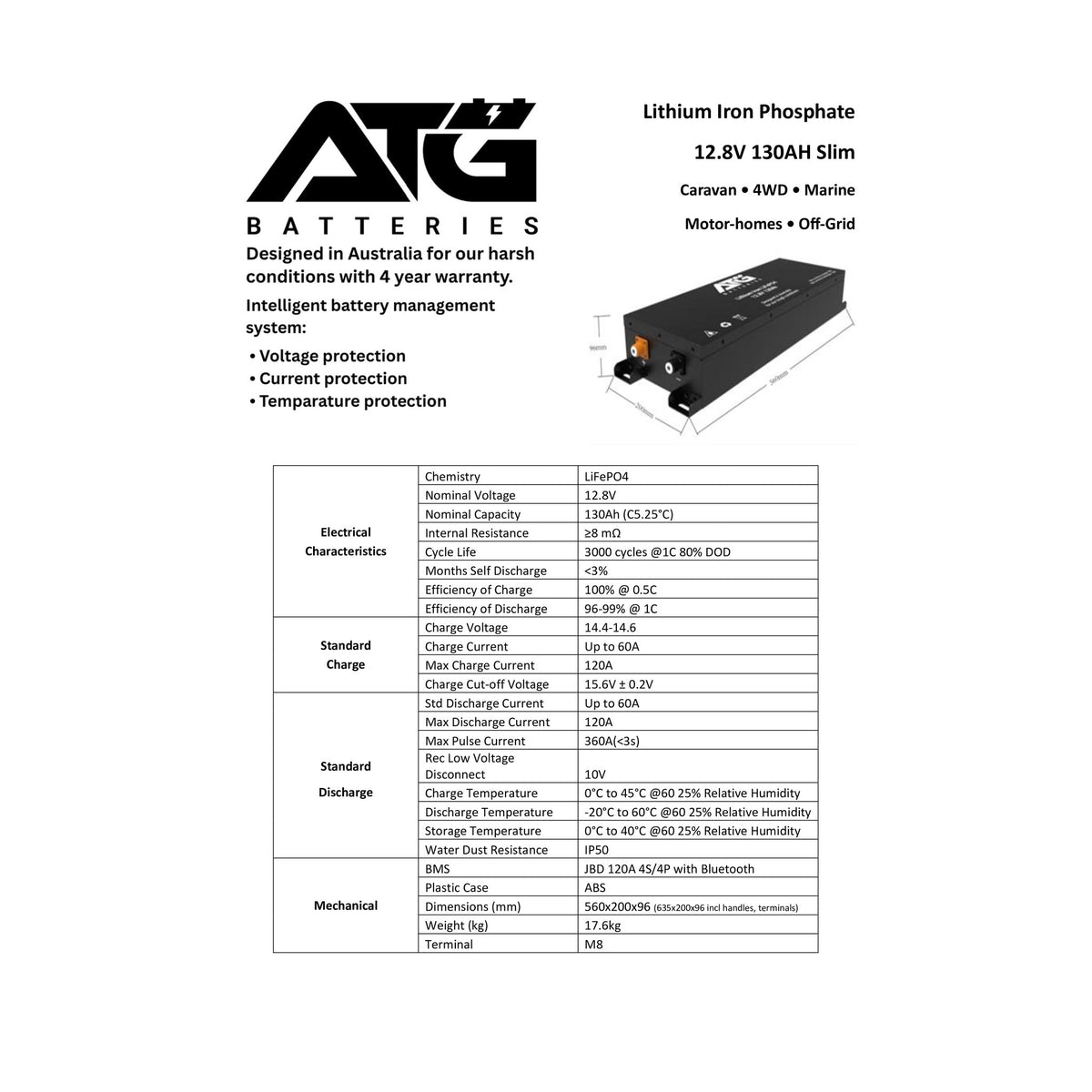

Specifications

• Capacity: 130Ah, 12V
• Chemistry: Lithium iron phosphate (LiFePO4), A grade prismatic IEC certified cells
• BMS: Jiabaida (JBD) 120A with Bluetooth, plus voltage, current and temperature protection
• Charge voltage: 14.4–14.6V
• Charge current: standard up to 60A, maximum 120A
• Discharge current: standard up to 60A, maximum 120A
• Peak discharge: 360A (<3s)
• Recommended low-voltage disconnect: 10V
• Cycle life: 3,000 cycles at 80% DoD (tested at 1C)
• Operating temperature: charge 0–45°C, discharge −20–60°C
• Terminals: M8
• Enclosure: ABS case, IP50
• Dimensions: 560 x 200 x 96mm (635 x 200 x 96mm including handles and terminals)
• Weight: 17.6kg

Warranty: 4 years
